High Flow Water Cooling Pump TA90E

High Flow Water Cooling Pump TA90E Features • 130L high […]

Product Parameters:

Voltage:48V

Max Flow :130L/min

Max Water Head:32M

Media:Antifreeze,Silicone Oil,Coolant,Water

Categories:

Brushless DC Pump, Cooling Circulation Water Pump, EV Charging Cooling Pump

Catalog Get Sample

• Overview

  High Flow Water Cooling Pump TA90E Features
  • 130L high-flow for rapid coaling
  • Maximum pressure 3Bar, efficient working point 51L@23M
  • Intelligent frequency conversion control
  • Extreme low temperature cold starting at -40°C, stable flow
  • 20,000 hours long lifetime



  Typical Applications
  • Liquid cooled EV charging stations
  • Data center / Servers cooling
  • Chiller
  • Thermal management
  • Laser cooling
  • Medical cooling



  Specification:

  Max Flow Rate	130L/MIN
  Max Static Lift	32M
  Rated Voltage	48V
  Power(w)	350W
  Motor Type	brushless DC motor
  Liquid Temperature	-40-80°C
  Ambient temperature	-40%~55°C
  Pump Theory	Centrifugal pump
  Media	Antifreeze,Silicone Oil,Coolant,Water
  Ideal Life Time	20000 Hours
  Working Mode	Continuous
  Power Supply	DC power supply, battery
  Customized functions	PWM,FG(RPM) signal wire
  Remarks	Can’t dry-running, not Self-priming

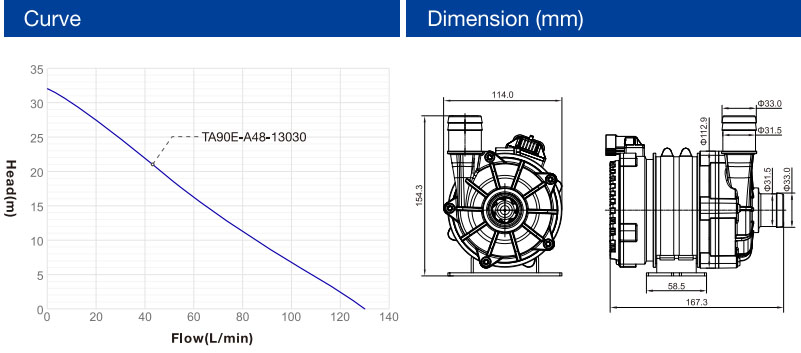

  Dimension(mm)&Curve:
